The Role of the Diesel Engine Block
- Structural Integrity: To support the pistons, crankshaft, and cylinder heads without deformation.
- Thermal Management: To dissipate heat efficiently and maintain optimal operating temperatures.
- Vibration Damping: To reduce noise and protect sensitive components.
- Corrosion Resistance: To endure long-term exposure to coolant, fuel residues, and environmental conditions.
Selecting the right material is crucial in meeting these requirements while balancing cost and manufacturability.
Cast Iron Engine Blocks
Overview and Composition
Cast iron has been the dominant material for diesel engine blocks for decades. It typically consists of iron, carbon, and silicon, with variations like gray cast iron, ductile iron, and Compacted Graphite Iron offering differing mechanical properties. Gray cast iron contains graphite flakes that provide natural vibration damping and excellent wear resistance, making it particularly suitable for heavy-duty diesel engines.
Advantages of Cast Iron
- High Strength and Durability
Cast iron’s high tensile and compressive strength allow it to withstand the enormous pressures generated during diesel combustion. Engines designed for trucks, buses, and industrial machinery often rely on cast iron to ensure longevity under extreme operating conditions. - Thermal Stability
The thermal conductivity of cast iron is moderate but sufficient to handle high combustion temperatures. Its ability to retain shape under thermal stress ensures that cylinder alignment remains consistent over thousands of operating hours. - Vibration Damping
Graphite flakes within gray cast iron absorb vibration and reduce noise, which is particularly beneficial in heavy-duty applications where engine vibrations can otherwise damage components or affect driver comfort. - Cost-Effectiveness
Cast iron is abundant and relatively inexpensive to produce. Its machinability and ability to be cast into complex shapes without extensive finishing make it a cost-efficient choice for high-volume production.
Limitations
While durable, cast iron is heavy, contributing to higher vehicle weight. This can negatively affect fuel efficiency, vehicle handling, and performance, particularly in passenger vehicles where weight reduction is critical. Additionally, cast iron is more prone to corrosion than some aluminum alloys, requiring protective coatings or careful maintenance.

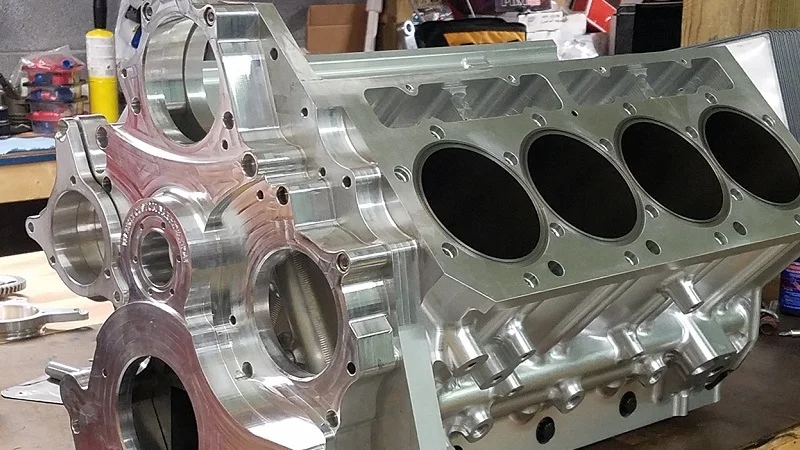

Aluminum Engine Blocks
Overview and Composition
Aluminum alloys, such as A356, 319, and 4032, have increasingly been used in diesel engine blocks, particularly in light-duty vehicles and performance applications. Aluminum’s low density significantly reduces engine weight, contributing to better fuel efficiency and handling characteristics.
Advantages of Aluminum
- Lightweight Design
Aluminum weighs approximately one-third as much as cast iron, allowing engineers to design lighter engines without compromising overall vehicle strength. This weight reduction improves fuel economy, acceleration, and braking performance. - Superior Thermal Conductivity
Aluminum conducts heat more efficiently than cast iron, allowing engines to reach operating temperature quickly and dissipate heat effectively. Improved thermal management reduces the risk of hot spots and enhances combustion efficiency. - Corrosion Resistance
Aluminum naturally forms a protective oxide layer, which resists rust and corrosion. This characteristic is especially valuable in vehicles exposed to moisture, road salts, or aggressive environmental conditions. - Design Flexibility
Aluminum’s casting and machining properties allow for more intricate and optimized block designs, including thinner walls and complex cooling channels, enabling more efficient engine designs.
Limitations
Despite its advantages, aluminum has lower tensile strength compared to cast iron. To compensate, engineers often reinforce critical areas with cast iron liners or use advanced aluminum alloys like Al-Si-Cu. Aluminum is also more expensive than cast iron, both in terms of raw material cost and the specialized manufacturing processes required.
Comparative Analysis
| Property | Cast Iron | Aluminum |
|---|---|---|
|
Weight |
Heavy |
Lightweight |
|
Strength |
High |
Moderate |
|
Thermal Conductivity |
Moderate |
High |
|
Corrosion Resistance |
Moderate |
High |
|
Manufacturing Cost |
Lower |
Higher |
|
Vibration Damping |
Excellent |
Moderate |
|
Fuel Efficiency Impact |
Lower due to weight |
Higher due to lighter weight |
Emerging Materials: Compacted Graphite Iron (CGI)
Compacted Graphite Iron (CGI) is a relatively recent innovation that combines the strengths of cast iron and aluminum. It features a unique graphite structure that provides higher tensile strength and fatigue resistance than traditional gray cast iron. CGI also exhibits better thermal conductivity than cast iron while retaining durability under high-pressure diesel combustion.
Advantages of CGI
- Enhanced Strength: Can withstand higher cylinder pressures without deformation.
- Improved Thermal Conductivity: Facilitates efficient heat management.
- Reduced Weight Compared to Traditional Cast Iron: Offers a middle ground between cast iron and aluminum.
- Longevity: Resists fatigue and thermal stress, extending engine life.
CGI is increasingly used in modern diesel engines, especially in heavy-duty trucks and industrial applications where both strength and weight reduction are critical.
Design and Manufacturing Considerations
- Casting Methods: Sand casting, die casting, and permanent mold casting affect the microstructure and mechanical properties of the engine block.
- Cylinder Liners: Aluminum blocks often require cast iron or steel liners to improve wear resistance in the cylinder bores.
- Cooling System Integration: The block material affects the design of cooling passages, with aluminum allowing more complex channels for optimal heat dissipation.
- Machining and Assembly: Material hardness and thermal expansion influence machining tolerances and assembly practices.
Real-World Applications
- Heavy-Duty Trucks: Cast iron and CGI dominate due to their durability and ability to withstand high cylinder pressures.
- Passenger Vehicles: Aluminum is preferred for light-duty diesel engines, optimizing fuel efficiency and reducing emissions.
- Performance Diesel Engines: Aluminum alloys, sometimes reinforced with advanced liners, are used to balance weight reduction with strength.
- Industrial Machinery: CGI and cast iron are favored for stationary diesel engines where longevity and reliability outweigh weight considerations.
Conclusion
The selection of materials for diesel engine blocks is a critical engineering decision that impacts performance, efficiency, durability, and cost. Cast iron remains the gold standard for heavy-duty and high-stress applications, offering strength, vibration damping, and cost-effectiveness. Aluminum provides a lightweight alternative with superior thermal conductivity and corrosion resistance, making it ideal for passenger vehicles and performance engines. Emerging materials like Compacted Graphite Iron offer a hybrid solution, combining strength, thermal management, and weight reduction.
Understanding the properties, benefits, and limitations of each material allows manufacturers and engineers to design diesel engines that meet specific performance and reliability requirements. Whether prioritizing durability, efficiency, or innovation, the choice of engine block material remains central to the overall success of a diesel engine.
