When it comes to engine performance, most car enthusiasts know about cylinder heads. But what does “CNC cylinder head” really mean, and how is it different from a standard OEM cylinder head? This article explains the concept, the production process, and why CNC cylinder heads are considered a high-performance upgrade.
What is a Cylinder Head?
A cylinder head is a critical engine component that sits on top of the engine block. It houses the combustion chamber, intake and exhaust ports, valves, and sometimes camshafts. The cylinder head plays a vital role in engine efficiency, power output, and durability.
Standard OEM Cylinder Head
- Manufactured according to the car maker’s specifications.
- Made from aluminum alloy or cast iron.
- Machined on critical surfaces to ensure proper sealing and fit.
- Designed for durability and reliability, suitable for normal driving conditions.
What Does CNC Mean in Cylinder Heads?

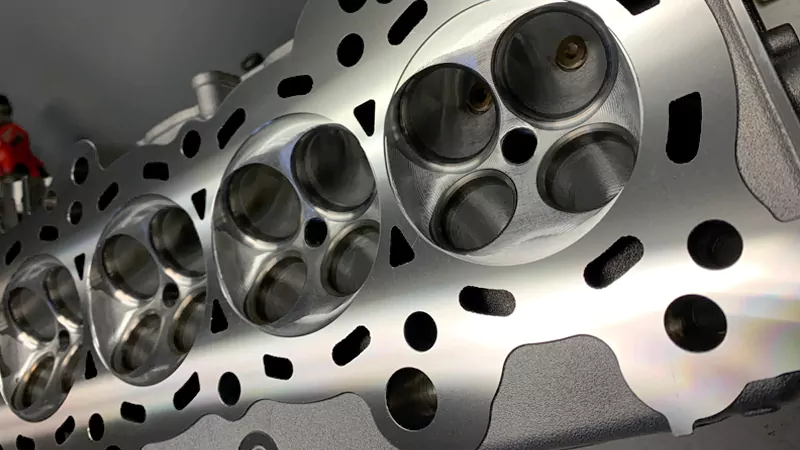

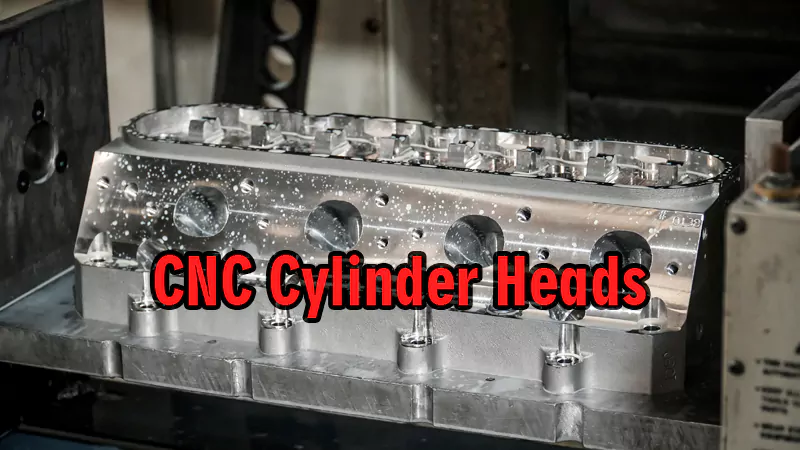

CNC stands for Computer Numerical Control, a technology used to precisely machine parts using computer-controlled tools. A CNC cylinder head refers to a cylinder head that has undergone secondary precision machining, beyond the standard OEM production. This includes:
- CNC finishing of combustion chambers
- Polishing and reshaping intake and exhaust ports
- Re-cutting valve seats and guides
- Surface finishing of the cylinder head base
The goal is higher precision, improved airflow, and better engine performance.
Why Not All Cylinder Heads Are CNC Processed
Even standard OEM cylinder heads may use some CNC machining, but usually only for key surfaces like:
- Cylinder head base (mating surface with the engine block)
- Valve guides and seats
- Camshaft bearing surfaces
Other areas, such as combustion chambers and ports, typically remain in their as-cast form. This is sufficient for normal operation but does not optimize airflow or combustion.
In contrast, CNC cylinder heads receive full secondary machining, allowing for:
- Optimized intake and exhaust flow
- Uniform combustion chamber volume across cylinders
- Increased valve clearance precision
- Enhanced performance and durability
Benefits of CNC Cylinder Heads
Improved Engine Efficiency
CNC cylinder heads enhance airflow through the intake and exhaust ports, ensuring that air and fuel enter the combustion chamber more smoothly and efficiently.
- Optimized combustion chamber shape allows more complete fuel burning, reducing wasted fuel and emissions.
- Better airflow increases volumetric efficiency, which translates directly into higher power output and better throttle response.
- For high-performance or modified engines, even small improvements in airflow can make a noticeable difference in acceleration and overall engine efficiency.
High Precision and Consistency
CNC machining ensures that every cylinder is almost identical, reducing variations between cylinders.
- Consistent dimensions improve combustion uniformity, which makes the engine run smoother and more reliably.
- Precise valve seat and guide machining ensures accurate valve movement, reducing leakage and improving compression.
- For engines under high stress or high RPMs, this precision prevents uneven wear and reduces the risk of engine failure.
Performance Upgrade for Modified Engines
CNC cylinder heads are especially valuable for engines where maximum airflow and combustion efficiency are critical.
- Racing, drifting, and performance tuning often require larger valves, port shaping, or altered combustion chamber geometry, which can only be achieved reliably through CNC secondary machining.
- Properly optimized cylinder heads can increase horsepower and torque without requiring extensive modifications elsewhere in the engine.
- They also allow for higher compression ratios, further enhancing performance.
4. Enhanced Durability and Longevity
CNC precision reduces mechanical stress on components by ensuring perfect alignment and contact between valves, seats, and guides.
- Accurate valve seats and guides reduce wear and tear on valves, leading to longer-lasting performance.
- By maintaining optimal airflow and combustion, CNC cylinder heads help minimize hot spots and prevent premature engine damage.
- Overall, engines with CNC cylinder heads are more reliable under extreme conditions, whether daily driving, heavy towing, or motorsports.
CNC Cylinder Head vs OEM Cylinder Head
| Feature | OEM Cylinder Head | CNC Cylinder Head |
|---|---|---|
|
CNC Machining |
Only critical surfaces |
Full secondary precision machining |
|
Airflow Optimization |
Minimal |
High |
|
Combustion Chamber Precision |
Standard |
High, uniform across cylinders |
|
Purpose |
Reliability, standard use |
Performance upgrade, racing, tuning |
|
Cost |
Lower |
Higher |
Conclusion
While OEM cylinder heads are sufficient for regular driving, CNC cylinder heads offer enhanced precision, airflow optimization, and performance. The term “CNC cylinder head” not only refers to the use of computer-controlled machining but often implies secondary machining beyond the factory standard, making it a popular choice for enthusiasts, performance tuners, and professional builders.
