In engine manufacturing, the casting method used for cylinder heads plays a crucial role in determining durability, performance, and overall reliability. Two major casting techniques dominate the industry: gravity casting and pressure die casting. While both processes are capable of producing high-quality aluminum cylinder heads, they differ in material behavior, production efficiency, and suitability for various applications.
This article explores the two methods, comparing their strengths and limitations, and highlights why gravity casting remains a preferred choice for high-performance and heavy-duty cylinder heads. For manufacturers or buyers considering quality and reliability, understanding these processes is essential—and our factory is ready to provide expert support for your gravity-cast cylinder head needs.

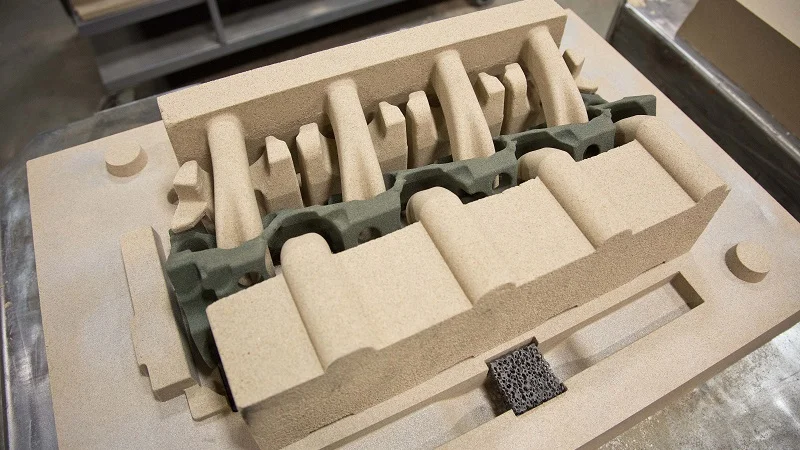

Understanding Cylinder Head Casting
The cylinder head is one of the most critical components in an internal combustion engine. It seals the top of the cylinders, houses combustion chambers, and accommodates valves, spark plugs, and fuel injectors.
To endure high temperatures and pressures, cylinder heads are typically produced from cast aluminum alloys or cast iron. Casting allows for complex internal passages for coolant and oil, as well as integrated features for mounting and valve operation, all in a single manufacturing step.
Choosing the right casting method not only impacts mechanical strength and thermal performance but also affects production consistency and service life.
What Is Gravity Casting?
Gravity casting, also known as permanent mold casting, involves pouring molten aluminum into a preheated metal mold, relying solely on gravity to fill the cavity.
Because no external pressure is applied, the molten metal flows naturally and cools gradually, resulting in a dense, uniform structure. This slow solidification helps reduce internal defects and improve mechanical integrity.
Key Steps in Gravity Casting:
- Mold Preparation: The mold is preheated and coated to ensure smooth metal flow.
- Pouring: Molten aluminum is poured carefully under gravity into the cavity.
- Cooling: Gradual cooling allows uniform solidification, reducing porosity.
- Ejection and Trimming: The casting is removed and cleaned for finishing or machining.
Gravity casting is especially suitable for medium-volume production and heavy-duty applications, where reliability and long-term performance outweigh the need for extreme production speed.
What Is Pressure Die Casting?
Pressure die casting uses high pressure to inject molten metal into a steel mold. This technique ensures that the metal fills intricate cavities quickly, allowing for high dimensional accuracy and excellent surface finish.
Key Steps in Pressure Die Casting:
- Die Clamping: Two halves of the steel mold are locked securely.
- Injection: Molten aluminum is injected at high pressure to fill the mold.
- Rapid Cooling: Contact with the steel mold allows quick solidification.
- Ejection: The part is removed with minimal post-processing.
Pressure die casting excels in high-volume production, offering speed and consistency, but it can introduce porosity and may require additional post-processing to achieve the desired mechanical performance.
Comparing Gravity Casting and Pressure Die Casting
| Feature | Gravity Casting | Pressure Die Casting |
|---|---|---|
|
Filling Method |
Relies on gravity |
High-pressure injection |
|
Production Speed |
Moderate |
Very fast |
|
Tooling Cost |
Moderate |
High |
|
Surface Finish |
Good |
Excellent |
|
Dimensional Accuracy |
High |
Very high |
|
Porosity Risk |
Low |
Moderate to high |
|
Mechanical Strength |
Excellent |
Good, may require inspection |
|
Ideal Production Volume |
Low to medium |
High |
|
Cooling Rate |
Slow, uniform |
Rapid |
|
Suitability for Heavy-Duty Applications |
Excellent |
Moderate |
While pressure die casting offers speed and precision, gravity casting delivers superior mechanical strength and lower defect rates, making it particularly suitable for applications that demand long-term durability and reliability.
Advantages of Gravity Casting
1. High Structural Integrity
Slow cooling promotes uniform grain formation, producing cylinder heads with excellent density and strength—critical for heavy-duty engines and high-performance applications.
2. Reduced Porosity
With natural metal flow, the risk of trapped air or gas bubbles is minimized, ensuring better sealing and durability.
3. Long Mold Life
Gravity casting molds experience less wear, lowering maintenance costs and providing consistent quality across production runs.
4. Ideal for Thick-Walled Components
Gradual solidification makes gravity casting excellent for parts requiring robust walls and consistent performance.
5. Flexible and Cost-Effective for Medium Volumes
Compared to the high tooling costs of die casting, gravity casting allows more flexibility in custom designs and smaller production batches.
Advantages of Pressure Die Casting
- Fast Production Cycles: Suitable for mass production.
- High Dimensional Accuracy: Fine tolerances reduce post-machining.
- Excellent Surface Finish: Parts often require minimal finishing.
- Supports Complex Geometries: Thin walls and intricate designs are possible.
However, the method may introduce porosity and slightly lower mechanical strength, especially in high-stress applications.
Quality Control
Regardless of the casting method, rigorous quality control is essential. Modern gravity-cast cylinder heads undergo X-ray inspection, ultrasonic testing, and dimensional verification, ensuring every part meets strict engineering specifications.
At our facility, we combine careful alloy selection, precise temperature control, and skilled craftsmanship to produce cylinder heads that consistently meet performance standards, giving our clients confidence in long-term reliability.
Why Choose Gravity Casting for Your Cylinder Heads
While both methods are viable, gravity casting stands out for applications where durability, low porosity, and mechanical integrity are essential. Engines that operate under high stress, extreme temperatures, or demanding duty cycles benefit from the denser, stronger structure of gravity-cast cylinder heads.
Additionally, gravity casting offers flexibility in design and production volume, making it a preferred choice for custom projects and high-quality manufacturing.
Contact Us for High-Quality Cylinder Heads
If you are seeking reliable, high-performance cylinder heads produced via gravity casting, our factory is ready to assist. We provide customizable solutions, expert guidance, and superior service, ensuring that every cylinder head meets your exact requirements.
For inquiries or to discuss your project needs, contact us directly—we are committed to delivering high-quality cylinder heads that meet your performance and reliability expectations.
Conclusion
Both gravity casting and pressure die casting offer benefits in cylinder head production, but when reliability, strength, and low porosity are priorities, gravity casting remains the superior choice. With careful process control and rigorous quality assurance, gravity-cast cylinder heads provide long-term durability and consistent performance, making them ideal for demanding engine applications.
For businesses and manufacturers looking for a trusted supplier of gravity-cast cylinder heads, our factory offers tailored solutions, professional support, and consistent quality—helping your engines perform at their best.
